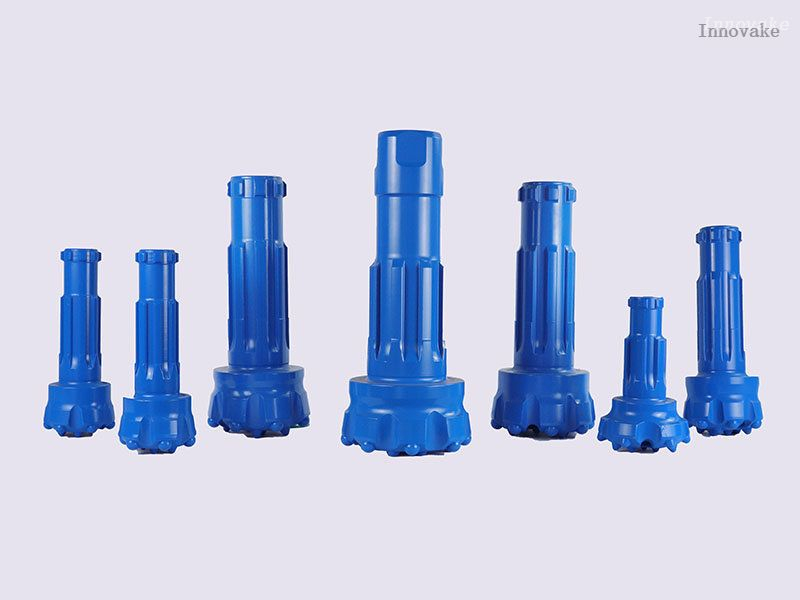

High Air Pressure DTH Drill Bits SP480

     DTH drill bits are mainly used in geological exploration, coal mines, water conservancy and hydropower, roads, railways, bridges, construction, etc.

Characteristics and advantages of DTH drill bits:

1. Long life of drill bits: alloy rigid material, its service life is long, and it is higher than similar products.;

2.  High drilling efficiency: the drill teeth are wear-resistant, so that the drill bit can always remain sharp, thus greatly improving the tooth inlet speed.;

3. Stable drilling speed: the drill bit uses impact and shear to break the rock;

4. Good diameter preservation effect: The Innovake drill bit has strong wear resistance and good diameter preservation performance, which can make efficient use of cutting teeth.;

Wide range of use: Practice has proved that the drill bit is suitable for soft and medium-hard (rock formations below grade 9 drillability,) hard formations such as carbonate rock, limestone, chalk, clay rock, siltstone, sandstone, etc., compared with ordinary drill bits, especially for drilling into rock formations of grade 6-8, the effect is particularly significant.;

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Technical Parameters


Head Shape Head Diameter Shank Length Spline Port holes Button qty.pcs X dia.mm Weight(Kg)
Button qty(Optional) Gauge Buttons Front buttons
Convex Face 108 165 10 2 Domed+Ballistic 7*φ16 6*φ14 7.3
Convex Face 115 165 10 2 Domed+Ballistic 7*φ16 6*φ14 7.7
Convex Face 127 165 10 2 Domed+Ballistic 8*φ16 4*φ14+3*φ13 8.7
Convex Face 130 165 10 2 Domed+Ballistic 8*φ16 4*φ14+3*φ13 8.8
